Panels in your own skin

weewx-celestial manual · weewx-celestial on GitHub · Report an issue

Every panel on the Celestial page is rendered by $celestial — a standard WeeWX search-list extension, user.celestial_page.CelestialPanels, installed along with this extension — and, as of 9.0, can be dropped into any skin’s Cheetah template, live layer and all. The bundled skin is the first consumer: its index.html.tmpl is a header, some section headings and a footer around the same calls this page documents, and it uses nothing another skin cannot.

This is the same shape as weewx-skyfield’s own panels guide, with one difference that decides most of what follows: skyfield’s panels are pictures, and these are instruments. A $sky_page panel is a string of markup, complete when the report ends. A $celestial panel is markup plus a live layer — a declaration of the loop-data fields it reads, a script that repaints it on every packet, a stylesheet, and (for the sky dome and the Next Visible Pass chart) a set of chart fragments the page refetches as the sky turns. So there are four things to arrange rather than three, five if your skin is not in English.

Before 9.0 there was no supported way to do this, and the manual said so: the page’s javascript was a Cheetah include with every per-report value baked into it, and the dome’s fragments were a dozen templates. A skin that had forked that code replaces the fork with the steps below, and inherits every fix since.

What a skin arranges

1. The search list

In your skin’s skin.conf (append to the list if your skin already sets it):

[CheetahGenerator]
    search_list_extensions = user.celestial_page.CelestialPanels

That publishes $celestial — every panel call below — and $sky_page beside it, so a skin embedding both these panels and weewx-skyfield’s own needs no second search list.

2. The fields the panels read

The panels first-paint from $almanac at report time and then go live from loop-data.txt, which means the fields have to be declared to weewx-loopdata under your report’s name (weewx-loopdata 7.0 or later). The declaration comes in two halves, exactly as it does for the bundled skin.

The fields that never change — the clock, the ten bodies, the countdown events — you paste into your own skin.conf, from the shipped declaration:

[LoopData]
    [[fields]]
        clock = current.dateTime.raw
        ...

They are a skin’s own business: skin.conf deploys with the skin, so this is one edit, not one per machine. Paste the whole thing unless you are showing a subset of the panels — the per-panel groups say what each one actually reads. A group of your own goes under a name of your own; weewx-loopdata merges by group name.

If your own suite holds your declaration to exactly what your pages read — a test that fails on a declared field nothing consumes, which is a good test to have — it will fail the moment you paste these groups, because the fields they carry are read by this extension’s markup rather than yours. Exempt the pasted groups by name and check them against the per-panel table instead; that is the table’s second use.

Such a test breaks a second way if it finds its fields by scanning script literals: celestial.js carries fallback key spellings beside the keys it reads — almanac.next_full_moon.raw sitting next to almanac.next_full_moon.unix_epoch.raw — and those are not fields to declare. Exempt the vendored scripts from that scan.

The satellite and comet fields follow the station’s [Skyfield] [[Satellites]] and [[Comets]], which no shipped file can know, so this extension’s installer writes them — for your report too, once you say which panels your page embeds. Say it in your own skin.conf, at the top level, beside [LoopData]:

celestial_panels = countdown, geocentric, dome, pass

That is a fact about your templates: the same on every station, changing only when you change which panels you embed. Declaring it with the skin means it deploys with the skin, and nobody installing your skin has to edit weewx.conf on any machine.

Then weectl extension install, --add-satellite/--add-comet and their inverses maintain that report’s satellites and comets groups exactly as they maintain the Celestial report’s — one writer, so the two cannot disagree — and only the groups your named panels actually read.

Have your own installer do it, so one install is enough. Those two groups are per-station, so something has to write them into weewx.conf after your skin lands. End your installer’s configure(engine) with:

    try:
        import user.celestial
        user.celestial.declare_page_fields(engine.config_dict,
                                           pending=self['config'])
    except ImportError:
        print('weewx-celestial is not installed; install it and re-run '
              'this installer to declare the panels\' fields.')
    return True

pending is your own config stanza, and it is not optional: weectl runs configure() before it injects that stanza, so on a fresh install your report does not exist yet and there would be nothing to declare under. Passing it lets the groups be written under a report that is about to exist; weectl’s own merge fills the rest in around them.

Install order does not matter. If weewx-celestial is already installed, your install writes the groups. If it is installed afterwards, its own installer walks every report and picks yours up. If it is never installed, your installer says so and finishes, and your pages carry the panels’ install hint.

A per-report override, when you need one. A report’s own stanza still beats the skin — the order WeeWX merges in — so a station can differ for one report without editing a skin it may not own:

[StdReport]
    [[MyReport]]
        skin = MySkin
        celestial_panels = dome, pass

Two reports running one skin — a metric twin, say — both inherit the skin’s key, and either can override in its own stanza. If you set the key in both places, the run says so in the log, and warns when the two disagree: the stanza wins, and a stale one is easy to forget.

On any report carrying celestial_panels, the group names satellites and comets belong to this extension: they are rebuilt or removed wholesale on every run. Put a satellite field of your own under another name. The key belongs on the report — never under [[Defaults]] or at [StdReport]’s top level, which WeeWX merges into every report, and which is refused as the misconfiguration it is. A page whose panels are not declared says so where it renders; see What a panel says instead of drawing.

A page embedding only the countdown row and the Geocentric still needs the key (both read comets, the countdown reads satellites too); a page embedding neither satellites nor comets needs no key at all.

3. The assets, and the config block

Three files, copied from skins/Celestial/ into your skin and deployed by your own [CopyGenerator]:

[CopyGenerator]
    copy_once = celestial.css, celestial.js, sky.js

celestial.css is the panel stylesheet: every color the panels use, both plates’ worth, as a token set you can restyle — see Restyling the panels.
celestial.js is the live layer: one static file publishing one global, celestial, with one method, celestial.start(config).
sky.js is weewx-skyfield’s tap-tooltip helper, copied verbatim; without it the SVG tooltips are hover-only and dead on a touch screen.

Do not load celestial-page.css. The bundled skin ships a second stylesheet, and it is the Celestial report’s own page — the body, the header, the h1, the card a <section> draws, the footer, the document’s color-scheme. Those rules name bare elements, so loading them in a page of your own repaints your whole site: your titlebar, your footer and every unrelated section on the page. celestial.css carries nothing that reaches past the panels, which is the whole point of there being two files.

Two practical notes on copying, both from the first skin to do it. You may already ship files of these names — a celestial.css of your own is not unlikely if you built celestial-style panels before 9.0 — so copy them under whatever names you like (css/celestial-panels.css, say); nothing in the panels depends on the file name, and following the step above literally would clobber your own file. And if your skin already carries weewx-skyfield’s sky.js, keep the copy you have and load it once; it is the same file.

In the page’s <head>:

    <link rel="stylesheet" href="celestial.css">
    <script src="celestial.js"></script>
    <script src="sky.js" defer></script>

celestial.js is deliberately not deferred. It arms the loop poll when it runs, and a packet can land while the panels below are still parsing; deferred, the paths that handle exactly that case would never run.

Then, as the first thing in <body>, the config block:

    $celestial.config_script($almanac, $filename)

That is the whole per-report half of the live layer — the [Extras] options, the station’s latitude, the generation instant, the report’s distance unit, language, body names, compass cardinals, [Texts] strings, satellites, comets, report name and loop-data file — emitted as one object, ending in the celestial.start(...) call. The script itself is static and knows nothing about your report. One key in it is worth knowing by name: gen_ts is the instant the page was generated for, the page’s clock until the first loop packet arrives — if your own code or tests reach for a generation instant, that is where it now lives.

If your page draws a countdown row of its own and your own script keeps it current, pass countdown=False:

    $celestial.config_script($almanac, $filename, countdown=False)

celestial.js then never touches a countdown chip, so a row of yours that uses the same element ids (chip-sun, chip-eclipse and the rest) has one writer, not two taking turns on every packet. The default is True, and a row from $celestial.countdown_html wants it: with it off, that row keeps its generation-time first paint and never counts.

$filename is core WeeWX’s own tag: the page’s path under HTML_ROOT. Passing it is what lets the page sit anywhere — in a subdirectory, beside a dozen other pages — because the block turns it into the route back up to HTML_ROOT, where the chart fragments are written. A page that passes nothing fetches relative to itself, which is right only when it sits at HTML_ROOT’s root.

Your report also needs [[[Extras]]] loop_data_file — the URL, relative to your report’s HTML_ROOT, at which the web server serves weewx-loopdata’s output. refresh_rate, expiration_time and page_update_pwd work as they do for the bundled page (see Configuration), and the page’s plate comes from the report’s theme option.

4. The fragments — only for the dome and the pass chart

The sky dome and the Next Visible Pass chart are weewx-skyfield drawings, and an open page keeps them current by refetching them: a staggered set of dome backdrops the page steps through as the sky turns, and the pass chart every five minutes. Those files are written by a generator that runs inside your own report, so they carry your report’s theme, language, [Almanac] names and generation instant:

[Generators]
    generator_list = weewx.cheetahgenerator.CheetahGenerator, user.celestial_page.FragmentGenerator, weewx.reportengine.CopyGenerator

With no more than that, the report writes one set — dome-svg.txt, dome-svg-1..9.txt and pass-chart.txt — into HTML_ROOT, at label scale 1.0, on the report’s own plate, and $celestial.dome_html($almanac) embeds it. A skin that wants more than one set — two label scales for two screen sizes, a night dome inside a light site, or simply a tidier directory — declares them:

[CelestialFragments]
    [[astro]]
        directory = astro
    [[smartphone]]
        prefix = dome-svg-sp
        label_scale = 2.2
        directory = astro

Key	What it does
`prefix`	The set’s file names: `<prefix>.txt`, `<prefix>-1..9.txt`, `<prefix>-pass.txt`. Default `dome-svg`, whose pass fragment keeps the name `pass-chart.txt`. One set per prefix, whatever their directories — a page that names no set finds its set by prefix. Two sets are refused separately for writing the same file, which follows `kind`: a dome-only set never claims the pass fragment its prefix spells, nor a pass-only set the ten dome slots
`label_scale`	Passed to weewx-skyfield’s chart labels; default 1.2 (see The two drawings)
`theme`	`dark`, `light` or `auto`, spelled exactly as the report option is; default the report’s own. A set on a plate of its own is drawn on that plate and keeps its own label colors — that is how a night dome sits inside a light page
`directory`	Where under `HTML_ROOT` the set is written; default `HTML_ROOT` itself. A plain relative path — no leading slash, nothing that could leave `HTML_ROOT`
`kind`	Which fragments the set is for: `dome` (the ten backdrops), `pass` (the chart) or `both`, the default. A skin with the dome on one page and the chart on another, at different label scales, wants a set for each — and without this each writes the other’s files every cycle for a page that never asks. A call for the panel a set does not write is refused, with the line below and the reason in the log, rather than pointed at a file nothing will ever write
`narrow_label_scale`	A second label scale for narrow screens (9.3, weewx-skyfield 2.5): the labels are laid out again at this scale inside the same drawing and a media rule in the chart’s own style block picks the layout. With `narrow_media`, or neither; positive; not the set’s `label_scale`
`narrow_media`	The query that selects the narrow layout, `"(max-width: 600px)"`, quoted; only letters, digits, spaces and `: ( ) , . -`, parentheses balanced, since it is written into the chart’s own style block

The page then names the set it embeds, and gets that set’s scale, plate and file names in one:

    $celestial.dome_html($almanac, set='astro')
    $celestial.pass_html($almanac, set='astro')

The two drawings

Since 9.6 every dome and pass chart is drawn twice into the one fragment — once in weewx-skyfield’s desk frame and once in its phone frame — and the stylesheet shows the one that fits. You get this without asking for it, and the bundled page needs no setting for it.

The choice is made on the drawing’s own width, not the window’s. It is a @container query, which matters most to you: the width a chart renders at depends on your chrome, your columns and your breakpoints, and nothing in this extension can know any of them. A window rule would be wrong in your skin by exactly as much as your layout differs from this one.

The width is derived per set, not fixed. A chart’s smallest label is 10 units times the set’s label_scale, so the width at which it reaches 11px moves with the scale: 935px at 0.8, 623px at the 1.2 default, 534px at 1.4. Each fragment carries its own as data-frame-at, and celestial.js applies it. The stylesheet’s own @container rule states the default scale’s width, which is what a page with no javascript keeps — correct for any set on the default, and the only number a stylesheet can state, since a container query’s condition takes no variable. So if you set a label_scale, you get the right switching width for free; you do not have to compute or maintain one.

The phone drawing is a different drawing, not the desk one with larger words: 360 units across instead of 680, its own type sizes, and its content thinned to make room for them (stars to magnitude 4.0, a constellation named only where its figure is wide enough). Every body, satellite, comet and radiant is drawn and named in both. The Geocentric dial does the same thing in the browser, in this extension’s own script.

What that means for your markup, if you read a fragment or style one:

<div class="domefrag" ... data-frames="both">
  <div class="cel-frame" data-frame="wide">...</div>
  <div class="cel-frame" data-frame="narrow">...</div>
</div>

The box is what is hidden, not the <svg>. A pass chart is its drawing plus the pass’s dated head line, and hiding only the drawing would leave that line on the page twice.
data-frames="both" appears only when the fragment really holds two drawings. If one frame fails to draw, the other is emitted bare, with no boxes and no attribute, so it shows at every width — the switch can never be the reason a panel is blank.
Anything of yours that reads a fragment and expects one <svg> finds two. Take the one inside the box you mean, or act on both.
You do not need to match a breakpoint: the panels measure themselves. If you want your chrome to change at the same moment the drawings do, put your own @container query on the same wrapper rather than guessing a viewport width.

A set’s narrow_label_scale and narrow_media no longer reach a narrow screen. They add a second label layout inside the desk drawing, and where that drawing renders too narrow to be read it is not what shows. They are still accepted and still do their work above that, so a set asking for larger labels in the band between a phone and a desk — say "(max-width: 900px)" — keeps working exactly as it did. A set whose narrow_media is a phone breakpoint should drop both keys: a phone now gets a drawing made for it, which is what those keys were reaching for.

The dial’s label placement measures your type, it does not assume it. The Geocentric dial places each name against the names already on it and drops one it cannot fit rather than stacking it. The room it reserves is the browser’s own measurement of the glyphs it drew — your face, at your size, in your language, including whatever the reader’s device fell back to — taken afresh on every redraw. So you may size .bodylab and friends however suits your page, and you may give them more than one size within a single frame: a media query of your own, a container that grows, a root font that scales with the viewport. The placement follows without being told, and it is never working from a size it read earlier. What it cannot do is make room that is not there: on a narrow dial carrying large type, expect names to be dropped, and expect which ones to vary with where the sky has put things. A dropped name is still reachable — its mark keeps its tooltip.

A set’s label_scale now defaults to 1.2, not 1.0. A chart is capped at 640px of glass and its smallest label is 10 units in a 680 unit frame, which rendered at 9.4px — under any legibility standard, on every desktop. If you set a scale of your own, check it the same way: your smallest label is 10 × scale units, and it wants to reach 11px at the narrowest width you show the desk drawing at.

Two label layouts in one drawing

A skin with two label scales for two screen sizes — a desktop column and a narrower one — does not need two sets or two pages. Give the set a narrow layer:

[CelestialFragments]
    [[stars]]
        narrow_label_scale = 2.2
        narrow_media = "(max-width: 900px)"

The set takes the default label_scale, so its frame threshold is 623px and a 900px query sits above it — which is what makes the layer reachable at all. Declaring label_scale = 0.8 here instead would move the threshold to 935px and the query would never show anything, because below 935px this drawing is hidden and the phone one is shown in its place.

    $celestial.dome_html($almanac, set='stars')

Every backdrop and chart the set writes then carries both label layouts — weewx-skyfield lays the labels out once per scale, because the collision layout depends on the size, which is why a CSS rescale would not do — and a media rule inside the chart’s own style block shows the one the viewer’s width calls for. A phone paints its own labels at first paint; nothing is fetched that a desktop does not fetch. The scale reaches only the text: dots, markers and rings are drawn once. Hold the query in skin.conf to the breakpoint in your stylesheet with a test of your own; the browser cannot report a mistyped query, it simply never matches. The keys arrived with weewx-skyfield 2.5; 9.6 requires 2.7. Keep the query above your set’s frame threshold: below it this drawing is hidden and its layers with it (see The two drawings).

A skin may still choose its set per page if it wants to, and set= takes a Cheetah variable — unquoted, since Cheetah does not interpolate inside a quoted string. set='$dome_set' passes the literal text $dome_set; what that case wants is:

    #set $dome_set = 'stars_sp' if $smartphone else 'stars'
    $celestial.dome_html($almanac, set=$dome_set)

A call naming no set gets the set on the dome-svg prefix — the default set on a skin that declares none, or whichever declared set holds that prefix. A call naming a set the skin does not declare is refused, with a line in the dome’s place and the set’s name in the weewxd log; it is never quietly answered with the default.

Declaring any set replaces the default, so a skin that adds one for a second page and still wants the plain one declares that one too, with prefix = dome-svg. Two reports writing sets into one HTML_ROOT must give them distinct prefixes — the files are named by prefix alone, and whichever report ran last would otherwise own them.

5. If your skin is not in English

The panels translate through your report’s [Texts], not the Celestial skin’s: $celestial reads the skin dict it is given. Copy the [Texts] section of skins/Celestial/lang/<code>.conf into your own skin’s lang file for each language you ship — the strings are reproduced in the translation dictionary — or set the entries in weewx.conf, under the report or [[Defaults]], where they survive upgrades. Anything you leave out falls back to its English key, one string at a time; nothing breaks. Body, satellite and comet names come from the report’s [Almanac] section as usual, and so need nothing copied. See Translations.

The calls

Every one takes the report’s $almanac and returns markup, guarded: a panel that fails to render is logged with its traceback and left out, and the rest of the page and the rest of the live layer carry on.

Call	What it renders
`$celestial.countdown_html($almanac)`	The countdown row — the chips, first-painted and then counting on every loop packet
`$celestial.geocentric_html($almanac, caption=True)`	The Geocentric: the dial (the javascript builds it on the first packet), its caption and the roster beside it
`$celestial.dome_html($almanac, set='', caption=True)`	The sky dome: the fragment set’s current backdrop in its self-describing wrapper, its caption and its frozen-sky line
`$celestial.dome_roster_html($almanac, set='')`	The “next pass overhead” roster — every configured satellite’s next pass of any kind
`$celestial.pass_html($almanac, set='', caption=True)`	The Next Visible Pass chart and its caption, hidden when no pass is in the window
`$celestial.pass_roster_html($almanac, set='')`	The visible-pass roster beside it
`$celestial.pass_panel_hidden($almanac, set='')`	True when the pass panel has nothing at all to show, so your own section chrome can hide with it; the javascript unhides `#pass-sec` by that id when a pass enters the window
`$celestial.footer_html($almanac)`	The credit line, true for whichever almanac actually served the page
`$celestial.theme_class($almanac)`	`theme-dark` or `theme-light` — the report’s `theme` resolved at generation, `auto` included. Put it on your root element, or on the container holding the panels: both plates are keyed on the class, so a dark panel box inside a light site is a matter of putting `theme-dark` on that box
`$celestial.config_script($almanac, $filename)`	The config block and the `celestial.start` call. Add `countdown=False` when your page drives countdown chips of its own

The rosters are separate calls so you can place them where you like; the bundled page puts each beside its chart in a two-column grid, which is its own chrome, not the panel’s.

The captions can move too. caption=False on the Geocentric, the dome or the pass chart leaves out the paragraph explaining how to read that chart, and nothing else. $celestial.geocentric_caption($almanac), $celestial.dome_caption($almanac, set='') and $celestial.pass_caption($almanac, set='') return that paragraph’s text on its own, translated exactly as the panel would show it, for you to place wherever your page keeps its explanations. Give a caption the same set as its panel:

$celestial.dome_html($almanac, set='astro', caption=False)
#set $why = $celestial.dome_caption($almanac, set='astro')
#if $why
<div class="my-popover">$why</div>
#end if

A caption call returns an empty string exactly where its panel would carry no caption: when the almanac cannot draw the sky and the panel shows its install line instead, when the dome’s drawing failed and the panel says so, or when the set is refused. So an explanation never stands beside a chart that is not there. The one state it cannot follow is the pass chart waiting for a pass: with no visible pass in the window the chart first-paints hidden, and the javascript unhides it when one arrives, long after the page was generated. If your page shows the pass roster while the chart is hidden and your caption should hide with the chart, follow the hidden attribute of #pass-wrap, which the javascript keeps current.

The text is ready to write into your markup as it stands: a translation may carry entities such as   or markup of its own, so never escape it again.

One dome and one pass chart per page. Both are addressed by id (#dome-svg, #pass-chart) and refetched by the script, so a second copy of either on one page would not refresh. The countdown row, the Geocentric and the rosters have no such limit.

A page, entire

This is the whole of a working consumer page — the one the test suite generates through WeeWX’s own report engine and then drives in a real browser. It sits in astro/ under its report’s HTML_ROOT, which is why its assets are one level up and its fragment set declares directory = astro:

#errorCatcher Echo
#encoding UTF-8
<!DOCTYPE html>
<html lang="en" class="$celestial.theme_class($almanac)">
  <head>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <title>$station.location</title>
    <link rel="stylesheet" href="../celestial.css">
    <script src="../celestial.js"></script>
    <script src="../sky.js" defer></script>
  </head>
  <body>
    $celestial.config_script($almanac, $filename)
    <div class="cel-page">
      <header>
        <h1>$station.location &middot; the live sky</h1>
        <div class="cel-sub cel-mono">updated <span id="last-update"></span> <span id="live-label"></span></div>
      </header>
      $celestial.countdown_html($almanac)
      <section>
        <h2 class="cel-eyebrow">Geocentric</h2>
        $celestial.geocentric_html($almanac)
      </section>
      <section>
        <h2 class="cel-eyebrow">Sky dome</h2>
        <div class="cel-domepanel">
          $celestial.dome_html($almanac, set='astro')
          $celestial.dome_roster_html($almanac, set='astro')
        </div>
      </section>
      #set $pass_html = $celestial.pass_html($almanac, set='astro')
      #if $pass_html
      #set $pass_sec_attr = ' hidden' if $celestial.pass_panel_hidden($almanac, set='astro') else ''
      <section id="pass-sec"$pass_sec_attr>
        <h2 class="cel-eyebrow">Next visible pass</h2>
        <div class="cel-passpanel">
          $pass_html
          $celestial.pass_roster_html($almanac, set='astro')
        </div>
      </section>
      #end if
      <footer>$celestial.footer_html($almanac)</footer>
    </div>
  </body>
</html>

The complete skin — that template, its skin.conf and the pasted field groups — is in the repository at tests/fixtures/consumer-skin/, and it is not a sketch: the suite runs a real report engine over it, asserts the page and its fragments land where they should, and then loads it in headless Chromium with a loop feed running to watch every fragment fetch reach astro/ and come back 200.

Two ids where your live layer and this one meet

The panels are self-contained, but two elements describe the feed rather than any one panel, and the script writes them if it finds them:

#last-update — the page’s clock: the timestamp of the last loop packet, painted in the report’s clock format with seconds (1:53:22 PM in English).
#live-label — the badge, where the feed’s faults are reported: LIVE, an age in seconds, NO DATA (HTTP 404), BAD DATA, OFFLINE, CLICK-ME.

If your skin has no live layer of its own, give the page both. They are the only honest account of a dead feed, and without them a stalled page looks merely quiet. The bundled skin puts both in its header.

If your skin already has a live layer — and any skin big enough to want these panels probably does — leave them out. This is the opposite advice, and it is the important half: those two ids are exactly where your live layer and this one collide. Both would write the same elements, on their own polls, in their own dress. The first consumer to try it found its own clock painting 11:50:00 AM and this script painting 11:50:00, twice every two seconds, in the most prominent cell of the panel header — a visible flicker on every page. Give your own elements ids of your own — reusing these two is what causes the collision, and a skin that has had a #live-label of its own for years is exactly the skin that will reuse them without thinking. Rename yours (paw-live-label, say) and the script skips these silently: every write goes through a null-safe path, there is no console noise, and no panel is affected.

The countdown chips are the same collision on a larger scale. If your skin draws a countdown row of its own and keeps it current itself, pass countdown=False to config_script (see the config block), and this script leaves every chip alone.

A host with its own expiry wants expiration_time = 0. The script runs an expiry of its own — after expiration_time hours it stops polling and offers CLICK-ME in #live-label — and if you have left that element out, it stops polling with nowhere to say so, while your own badge goes on reporting a feed the panels are no longer reading. Setting expiration_time = 0 in the report’s [[[Extras]]] disarms it entirely, leaving the policy to your own machinery. Two expiry regimes on one page is worse than either.

#pass-sec is optional in a third way: give your pass section that id and the script hides and unhides it as passes come and go; leave it off and the section stands, with the chart hiding itself inside it.

The script never reads `celestial_panels`

Panel presence is inferred from the DOM alone. A page with no countdown chips, or with the dome but not the pass chart, is silent on every packet — the renders find no element and return. celestial_panels drives the field declaration and the render-time message about it, and nothing in the browser reads it. So a page may embed any subset of the panels without configuring the script.

Restyling the panels

Everything the panels draw themselves — the dial, the rosters, the chips, the badge, the frozen-sky line — takes its colors from custom properties declared on :root in celestial.css, and every rule reads them through var(). No color is written into markup or javascript.

One rule in that stylesheet is not a color and is worth knowing about: the panels’ spacing was laid out under box-sizing: border-box, so the sheet sets it — scoped to the panels’ own subtree ([data-celestial], [data-celestial] *), never to your page. A site on the browser default gets the panels laid out as designed and keeps its own box model everywhere else.

Every class the panels wear is prefixed cel- (cel-row, cel-roster, cel-caption), so nothing here can collide with a class of your own, however deeply your own rules are scoped. The exceptions are the classes weewx-skyfield writes inside its own fragments, which keep its names. So a stylesheet of your own, loaded after celestial.css, restyles the lot:

:root { --night: #e3e3e3; --ink: #1c1c1c; --brass: #367ba3; }

The token names are part of the contract, so overrides survive an upgrade. They come in four families: the page surfaces (--night, --vault, --ink, --muted, --brass, --line for the outlines of boxes, --divider for the lines between the roster’s rows, --halo), the chart furniture (--grid, and --skylab/--conlab for the sky charts’ labels), the per-body identity colors (--c-sun, --c-moon, --c-mars, … --c-proxima), and the darker edges the three pale bodies take on paper (--e-sun, --e-moon, --e-venus, --e-earth). Read the top of celestial.css for the current set and what each is for.

On the light plate, write the override on .theme-light. The light plate’s tokens are declared there, and a class outranks a plain :root rule however late it is loaded — so a :root { --brass: … } override reaches the dark page and is silently lost on the light one. Write both:

:root { --brass: #367ba3; }
.theme-light { --brass: #1d5c80; }

Declare the tokens above the panels, not below them. An override on :root, or on a container that holds the panels, does what you expect. Declaring the whole token set on an element between :root and the panels — a body.night-page, say — also works, and silently pins you to today’s palette: your copies shadow this extension’s inside its own panels, so a value changed in a later release (weewx-skyfield 2.6 retuned the whole night palette) reaches the charts and not the dial, putting two shades of one thing on one page. If you do keep a copy of the values, pin it with a test against celestial.css rather than trusting it to stay true.

The marks weewx-skyfield draws — the dome’s stars and planets, the pass chart’s arc — are the exception: their colors are written inline in the SVG, chosen by the fragment set’s theme. A token cannot move them.

Their labels are a middle case worth knowing. Those carry skyfield’s own class names (starlab, conlab, gridlab, cardinal, bodylab), deliberately, so the two extensions’ charts read as one family — which means a rule of your own naming those classes styles the dome’s labels too, and beats the token route on specificity. That is fine and often intended; just know which of the two is in force before concluding the tokens have failed to reach the charts. Label sizes are the one thing your rules cannot take over: skyfield writes those inline on every label, which is what makes label_scale work. That is also why a fragment set on a plate other than the page’s keeps its own label colors rather than inheriting the page’s.

What a panel says instead of drawing

A panel that cannot draw says why, where it would have drawn, rather than vanishing — and says the same thing in the weewxd log, once per fault per report cycle. You will meet these while wiring a page up:

The panel says	What it means
Install weewx-skyfield …	The registered almanac cannot serve that panel — the ordinary tier behavior, not a wiring fault (see the almanac tiers)
The sky dome could not be drawn — see the weewxd log	The almanac is registered but the drawing came back empty; the log says why
This page’s report does not name the … panel in `celestial_panels`	Step 2’s key is missing that panel, so its live fields are not declared. Name it, re-run the installer, restart weewxd
This page’s report carries an invalid `celestial_panels`	The key names something that is not a panel, or sits where WeeWX would merge it into every report. The log names it
This page’s report’s field declaration is out of date	The panels are named but the groups in `weewx.conf` are not what the installer would write now — a satellite added to `[Skyfield]` by hand, say. Re-run the installer or the `--add-` verb, and restart weewxd
The page’s fragment set is missing or invalid in `[CelestialFragments]`	The `set=` name is not declared, or the skin declares sets but none on the `dome-svg` prefix and the call named none

A page that first-paints and then never moves, with nothing to say why, is the failure these lines exist to prevent: the declaration ones are rendered by asking the installer’s own question of the same weewx.conf at generation time.

The browser console carries the rest, once per kind: a fragment fetch that came back with an HTTP error or with something that is not a fragment, naming the URL asked, and — at load — a dome whose swap target carries no set name, which is never refetched at all. That is where to look when the panel renders and then the sky never steps.

The contract

Every panel’s root element carries data-celestial="<version>" — the version of this extension that rendered it. Inside a major version the surface is additive only: the DOM ids, the config keys, the fragment wrapper’s data-attributes, the field group names, the [CelestialFragments] keys, the celestial.css token names and the public call signatures above never change meaning or disappear. A panel may gain marks, keys and classes; changes.md names each one. 9.3 added two optional set keys, narrow_label_scale and narrow_media, and nothing on the page’s own markup; the label layers inside a chart (g.dome-labels, data-label-scale, and data-label-layers and data-label-media on the svg root) are weewx-skyfield 2.5’s contract, documented there. 9.4 added the config key countdown and the token --tail-below-op. 9.5 added the config key clock.

What is not contract: the internals of celestial.js, the shape of the SVG the dial builds, and the roster’s inner spans. A page that reaches past the documented ids and tokens is on its own.

The coupling to weewx-skyfield — the dome’s per-mark hooks, the chart palettes, the label classes — has not gone away. It has moved behind this extension’s own tests, where you inherit it instead of copying it, which is the whole point of this page. Run the two extensions in step, as their release notes ask, and it is not your problem.

Housekeeping

Uninstalling your skin takes its groups with it, on the next run. weectl has no uninstall hook, so your installer cannot clean up after itself: removing your skin deletes its skin.conf, taking the key, and would leave the two groups behind for weewx-loopdata to evaluate every packet for panels that no longer exist. So a report that names no panels, carries those groups, and whose skin’s skin.conf is gone has them removed by the next weectl extension install or --add-/--remove- verb, which reports the removal. A skin.conf that merely cannot be read — no permission, a mount that is not up, a syntax error — is left alone and logged: a skin that is gone is a statement, one that cannot be read is a question.
Deleting the key from a skin.conf that still exists leaves the groups. No key means “not this extension’s report”, so nothing is removed. To ask for their removal without removing the skin, empty the key — celestial_panels =, a report that embeds nothing — and re-run the installer or a verb.
weectl extension uninstall celestial does not clean up after a consumer. It removes its own report’s stanza and leaves yours alone, groups included.
Your skin’s own upgrade path. The copied assets are yours once copied, under whatever names you gave them: re-copy them from skins/Celestial/ after upgrading this extension, exactly as you would weewx-skyfield’s sky.js. Version-tag the URLs as the bundled page does (celestial.css?v=…); since 9.6 this is not a nicety.

Know what forgetting looks like, because it does not look like an error. A browser holding 9.5.1’s stylesheet against 9.6’s markup shows both drawings at once, stacked — the desk chart and the phone chart, and the pass chart’s dated head line twice — because the rules that hide one of them are in the new stylesheet and the old one has never heard of .cel-frame. An old script against new markup is quieter and just as wrong: nothing switches frames, and the live layer misplaces every mark on a narrow chart, because it reads the wide frame’s geometry instead of the data-dome-cx/-cy/-r the drawing declares. Nothing fails and nothing is logged. The script does announce a version-mismatched config in the browser console, which catches its half on a real upgrade; the stylesheet carries no version and cannot.

What copy_once does and does not do is worth being exact about, because it is easy to get backwards. It copies on the FIRST report cycle of each weewxd run, and it overwrites — so restarting weewxd refreshes your HTML root from your skin directory. What it cannot do is refresh your SKIN from this extension: re-copying the assets out of skins/Celestial/ after an upgrade is yours to do, and until you do it a restart faithfully re-copies the old ones.

If you are building a live page of your own instead

Nothing above stops you writing your own page against the same data — the panels are one way to spend weewx-loopdata’s almanac fields, not the only one. The full grammar is in weewx-loopdata’s manual, its own Build a live page covers the general pattern, and this manual’s Fields reference lists exactly what these panels read. Five things this skin learned the hard way, each of which applies to any live page:

One clock, and it is the packet’s. The loop packet’s own timestamp is the page’s time; the browser’s clock is a stopwatch, asked only how long something took, never what time it is. A viewer whose clock is wrong then sees exactly what a viewer whose clock is right sees, and a dead feed reads dead everywhere at once. See Whose time it is.
Absent and null are two different states. weewx-loopdata omits null-valued keys, so a field not declared (the report-time first paint stands) is distinguishable from one present but empty (no pass to report, no elements, no comet). Every honest “nothing to show” on this page leans on that.
First-paint every cell from $almanac, guarded individually. The page is then never blank while it waits for a packet, and a less capable almanac costs a cell rather than the report.
$almanac.texts succeeds on WeeWX 5.2 and then kills the page. The report’s [Almanac] names reach the almanac only from 5.3. You might expect 5.2 to raise a clean AttributeError you could default around — it does not: Almanac.__getattr__ walks the registered almanacs and PyEphem’s catch-all treats any unknown name as a heavenly body, so the lookup succeeds, returns something truthy, and dies one step later during report generation, so the page never appears at all. Read $almanac.__dict__.get('texts', {}) instead. The same shape lurks wherever an optional almanac attribute is probed: test the value, never the success of the attribute access.
Resolve the theme where the drawing happens. Server-drawn SVG arrives with its colors inside it, and any class you add to the elements is undone the moment the page refetches the fragment. So settle the plate at generation time, into a class on the root element, with every refetched fragment on the same palette as the page — which is what this skin does.

From weewx-skyfield 2.4 there is a second option, because each mark carries a sky-fill-<role> / sky-stroke-<role> class whose default sits inside the fragment at zero specificity. A rule in your stylesheet outranks that default and survives a refetch, since it lives in your sheet rather than on the element — so a consumer that wants a reader-driven light/dark switch can repaint the marks itself. This skin does not: it ships no .sky-* rule at all, which is what leaves those classes free for you.

Live in the wild

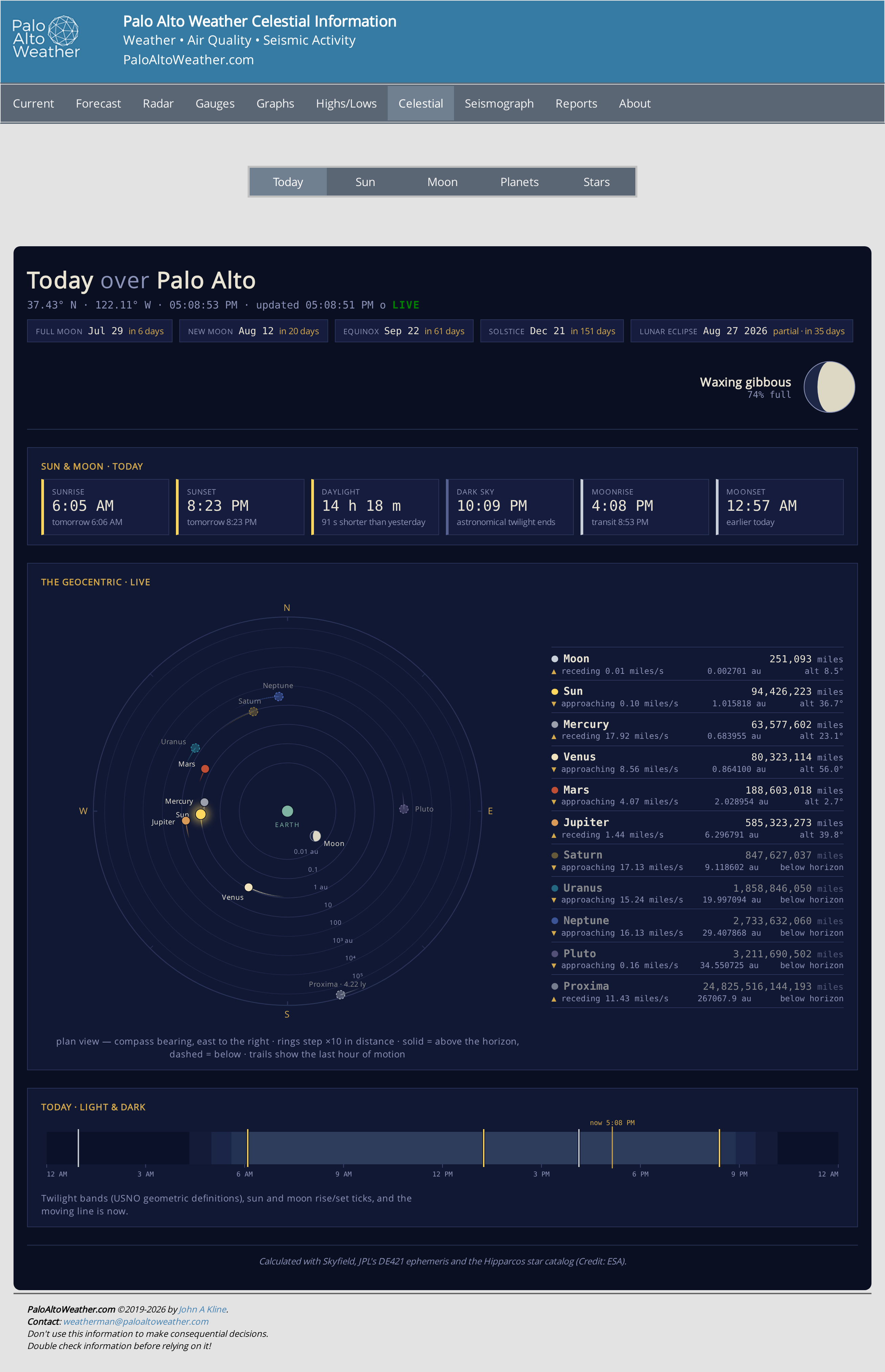

PaloAltoWeather.com’s Celestial Today page carries a Geocentric Live panel built with the same technologies used here (weewx-skyfield and weewx-loopdata), alongside pages of its own that read fields this skin does not.
